Immersion Chamber (Two Phase)
Systems
이미지를 클릭하면 크게 볼 수 있습니다
상세내용

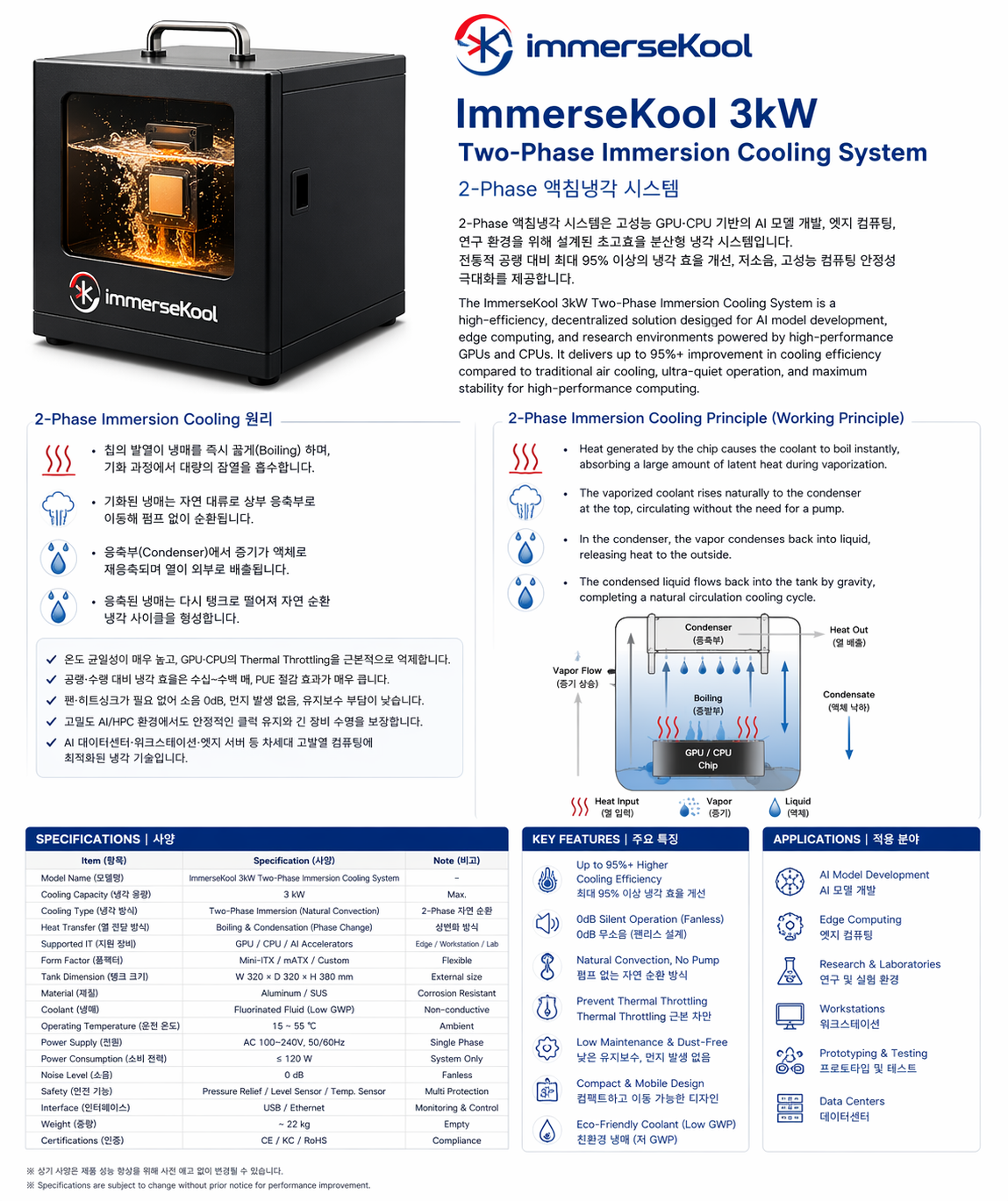

ImmerseKool 3kW Two-Phase Immersion Cooling System은
고성능 GPU 및 CPU 기반의 AI 연산, 엣지 컴퓨팅, 연구개발 환경을 위해 설계된
초고효율 분산형 액침 냉각 시스템입니다.
상변화(Boiling & Condensation)를 활용한 2-Phase 냉각 기술을 통해
기존 공랭 대비 최대 95% 이상의 냉각 효율을 제공하며,
소음 없는(0dB) 운용과 높은 시스템 안정성을 동시에 실현합니다.
특히 고밀도 AI 및 HPC 환경에서 Thermal Throttling을 억제하고
지속적인 고성능 연산을 가능하게 합니다.
| 항목 (Item) | 사양 (Specification) |
|---|---|
| 모델명 (Model Name) | ImmerseKool 3kW |
| 냉각 방식 (Cooling Method) | Two-Phase Immersion Cooling |
| 냉각 용량 (Cooling Capacity) | 3 kW |
| 냉각 원리 (Heat Transfer) | Boiling & Condensation (Phase Change) |
| 냉각유 (Coolant Type) | Fluorocarbon-based dielectric fluid |
| 순환 방식 (Circulation) | Passive (Natural Convection, No Pump) |
| 소음 (Noise Level) | 0 dB (Fanless Design) |
| 적용 대상 (Application) | GPU / CPU / AI Workstation / Edge Server |
| 온도 균일성 (Temperature Uniformity) | Very High |
| PUE 개선 (Energy Efficiency) | Significant reduction vs air cooling |
| 유지보수 (Maintenance) | Minimal |
| 설치 방식 (System Type) | Standalone / Distributed System |
| 적용 분야 (Application Field) | AI Data Center / HPC / R&D / Edge Computing |
