CDU (In-rack / In-row)
Systems
Click image to enlarge
Details
Application Summary (ENG)

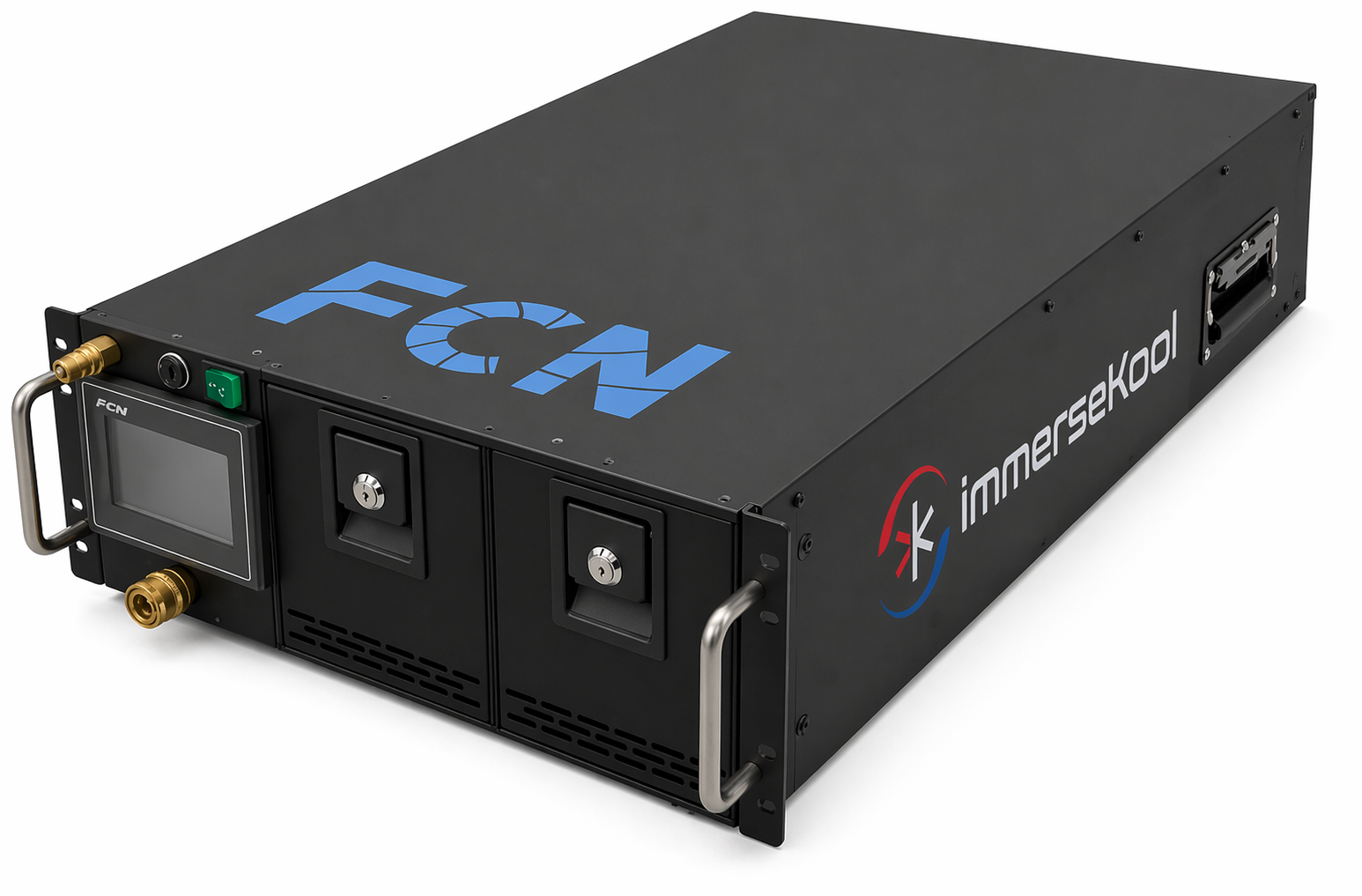

The In-Rack CDU (Coolant Distribution Unit) is a rack-mounted (4U) cooling unit for Direct Liquid Cooling (DLC) data centers.
It circulates, filters, and distributes coolant directly to CPU/GPU cold plates inside the server rack.
Typical Applications
-
Coolant circulation and distribution inside AI/HPC racks
-
Thermal management for high-density GPU servers
-
Redundant hot-swap pumps (1+1) for continuous operation
-
Modular rack-level cooling infrastructure
-
Retrofit of air-cooled racks to DLC systems
| 구분 | 4U 80 kW | 4U 200 kW |
|---|---|---|
| 크기 (mm) | 450 × 980.1 × 175.7 | 450 × 1094 × 175.7 |
| 냉각 용량 | 80 kW | 200 kW |
| 필터 | 내장 | 내장 |
| ATD (ΔT) | 13°C | 5°C |
| 펌프 | 1+1 이중화, 핫스왑 | 1+1 이중화, 핫스왑 |
| 최대 유량 | 100 LPM | 167 LPM |
| 전원 입력 | AC100~240V, 50/60Hz 또는 DC48V | AC100~240V, 50/60Hz 또는 DC48V |
| 최대 소비전력 | 700 W | T.B.D |
