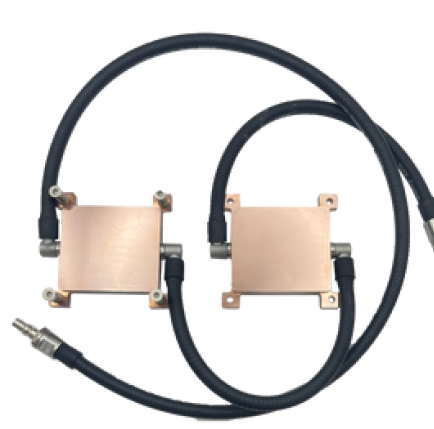

DLC Module (Cold plate hose kit)
Systems
Click image to enlarge
Details
Details
| Item | Details | Remarks |
|---|---|---|
| Inner Tube Material | High-Purity EPDM (Zinc-Free, Peroxide-Cured) | |
| Reinforcement | High-tensile synthetic fiber braid | |
| Outer Cover Material | Flame-resistant EPDM (Ozone/Abrasion resistant) | |
| Operating Temp Range | -40°C to +120°C (-40°F to +248°F) | |
| Max Working Pressure | Min 16 bar (232 psi) (Typically 300 psi) | |
| Safety Factor | Minimum 4:1 (Burst Pressure:Working Pressure) | |
| Flame Retardancy | Meets UL 94-V0 and UL 224 VW-1 standards | |
| Fluid Compatibility | Compatible with DI water, PG25, glycol-water solutions | |
| Ozone Resistance | Excellent |
