OCP / Custom Manifold
Components
Click image to enlarge
Details
Usage:

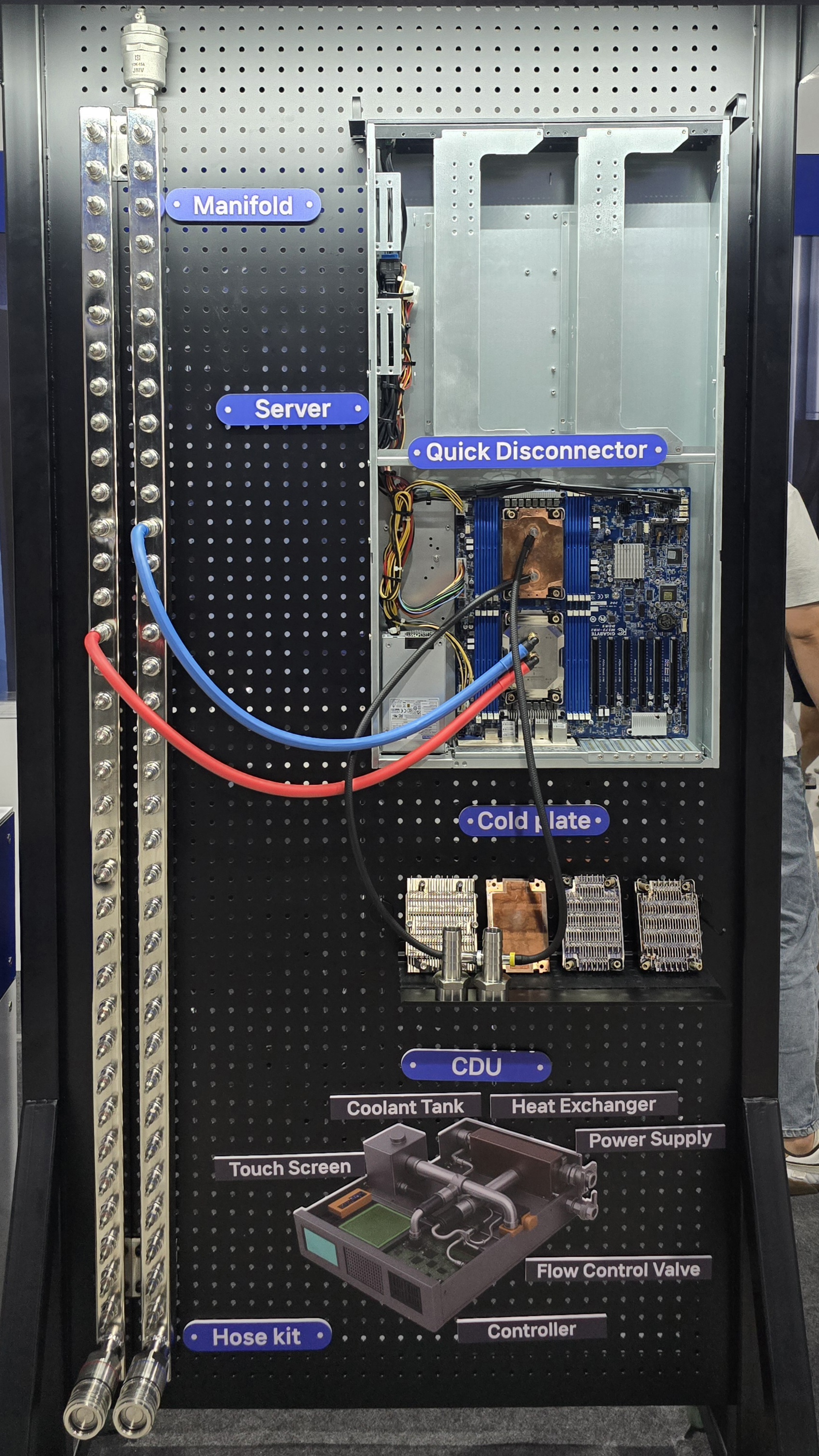

The DLC Manifold is a critical distribution component designed for the OCP ORV2 Rack environment. It is installed vertically at the rear of the rack to distribute coolant from the Cooling Distribution Unit (CDU) to individual IT chassis and return the heated fluid, ensuring efficient thermal management for high-density computing.
The DLC Manifold is a critical distribution component designed for the OCP ORV2 Rack environment. It is installed vertically at the rear of the rack to distribute coolant from the Cooling Distribution Unit (CDU) to individual IT chassis and return the heated fluid, ensuring efficient thermal management for high-density computing.
Specification Table:
| Item | Details | Remarks |
|---|---|---|
| Compliance | OCP Open Rack V2.0 (21-inch standard) | Standard |
| Cooling Method | Direct Liquid Cooling (DLC) | Cooling Type |
| Max Operating Pressure | > 100 psi (6.9 bar) | Max Pressure |
| Operating Temp Range | 20°C to 70°C | Op. Temperature |
| Material | Stainless Steel (Main body) | Material |
| Connection Type | Blind-mate Quick Disconnect (QD) | Connection |
| Recommended Flow Rate | ~1.5 LPM per kW (Load dependent) | Flow Rate |
| Flame Retardancy | UL 94-V0 (Non-metallic components) | Fire Safety |
